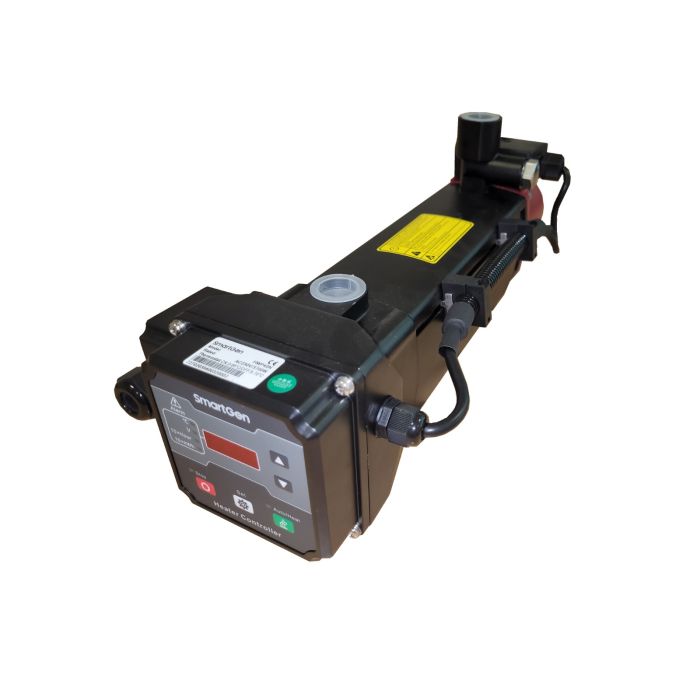

SMART HEAT EXCHANGER, Type HWP40N, SMARTGEN, 1P, 3000W, WITH CIRCULATION PUMP

Heat exchanger type: SMART

Rated power: 3000W

Rated current: 12,5A

Rated voltage: 240VAC

Number of phases: 1P

Allowable engine Displacement: (13~20)L

Insulation Resistance: ≥50MΩ

Voltage Withstand: 1.5kVAC @ 1min

Inlet/Outlet Size: G 3/4 Female Threads (Optional Φ19.5mm hosebarbs or G 3/4 Male Threads)

Max. Pressure: 0.5MPa

Pump Flow Rate: 40L/min @ 1.5m Head

IP Rating: IP44

Operating Temperature: (-40~+70)°C

Overall Dimensions: 414x261x190mm

Weight: 5,3kg
