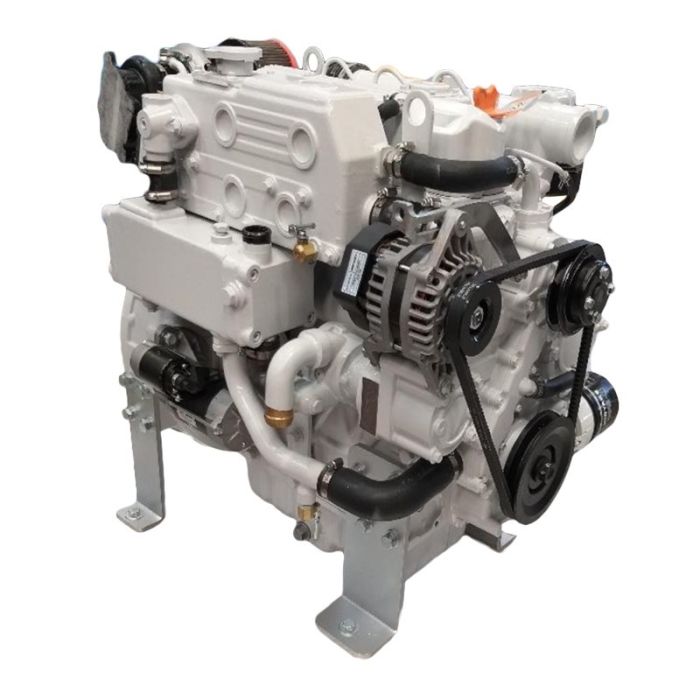

SPRINKLER DIESEL ENGINE, Type 4D24T, RAYWIN, 48kW, HEAT EXCHANGER

Engine type:RAYWIN 4D24T

UL Standard: NO

N ° cylinders: 4

Cylinder arrangement: In-line

Cooling: heat exchanger

Bore x stroke: 87 x 103 mm

Displacement: 2450 cc

Compression ratio: 17.8: 1

Net power: 48 kW (64 HP) / 2700 rpm

Continuous rated power 1500 rpm: 36 kW (48 HP)

Continuous rated power 1800 rpm: 36 kW (48 HP)

Starting: electric

Induction system: Turbocharged

Ignition order: 1 - 3 - 2 - 4

Flywheel (inch): 7,5"

Flywheel housing: SAE 4

Emissions standard:
RCD II - for propulsion applications Stage IIIA - for auxiliary applications

Length: 692 mm

Width: 534 mm

Height: 644 mm

Dry weight: 220 kg
