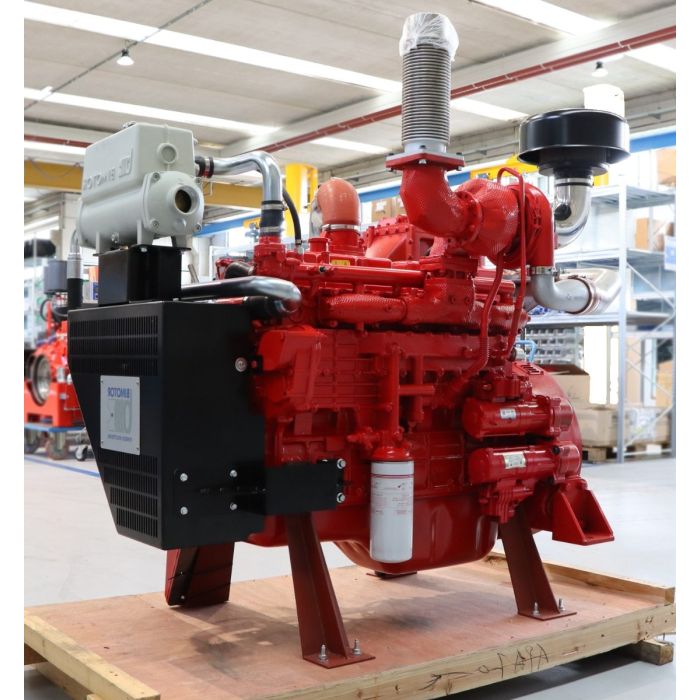

SPRINKLER DIESEL ENGINE, Type B7TF40N, BIMOTOR, 280kW, HEAT EXCHANGER

Engine type:BIMOTOR B7TF40N

UL Standard: NO

N ° cylinders: 6

Cylinder arrangement: In-line

Cooling: heat exchanger

Displacement: 6900 cc

Compression ratio: 16,8: 1

Net power: 280 kW (380 HP) / 2940 rpm

Continuous rated power 2100 rpm: 220 kW

Continuous rated power 2940 rpm: 280 kW

Starting: electric

Induction system: naturally aspirated

Ignition order: 1 - 5 - 3 - 6 - 2 - 4

Flywheel (inch): 14"

Flywheel housing: SAE 1

Emissions standard:
RCD II - for propulsion applications Stage IIIA - for auxiliary applications

Length: 1550 mm

Width: 1050 mm

Height: 1305 mm

Dry weight: 950 kg
